Page 27 - AND-Keymatic

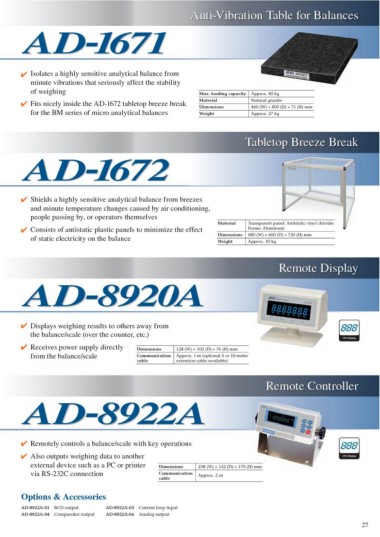

P. 27

Anti-Vibration Table for Balances

AD-1671

Isolates a highly sensitive analytical balance from            Max. loading capacity  Approx. 40 kg
minute vibrations that seriously affect the stability          Material               Natural granite
of weighing                                                    Dimensions             460 (W) × 400 (D) × 71 (H) mm
                                                               Weight                 Approx. 27 kg
Fits nicely inside the AD-1672 tabletop breeze break
for the BM series of micro analytical balances

                                                                           Tabletop Breeze Break

AD-1672

Shields a highly sensitive analytical balance from breezes     Material               Transparent panel: Antistatic vinyl chloride
and minute temperature changes caused by air conditioning,                            Frame: Aluminum
people passing by, or operators themselves                     Dimensions
                                                               Weight                 680 (W) × 600 (D) × 720 (H) mm
Consists of antistatic plastic panels to minimize the effect
of static electricity on the balance                                                  Approx. 10 kg

                                                                                               Remote Display

AD-8920A

Displays weighing results to others away from                                                                                       VFD Display
the balance/scale (over the counter, etc.)

Receives power supply directly  Dimensions     128 (W) × 102 (D) × 76 (H) mm
from the balance/scale
                                Communication  Approx. 1 m (optional 5 or 10-meter
                                cable          extension cable available)

                                                                                               Remote Controller

AD-8922A

Remotely controls a balance/scale with key operations

Also outputs weighing data to another    Dimensions            238 (W) × 132 (D) × 170 (H) mm                                       VFD Display
external device such as a PC or printer                        Approx. 2 m
via RS-232C connection                   Communication                                                                                      27
                                         cable

Options & Accessories

AD-8922A-01 BCD output         AD-8922A-05 Current loop input
AD-8922A-04 Comparator output  AD-8922A-06 Analog output
   22   23   24   25   26   27   28   29   30   31   32
