P. 32

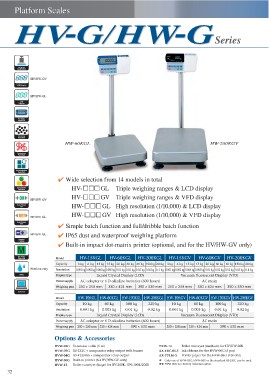

Platform Scales

    HV-G/ HW-GSeries

      External
    Calibration

                 HV/HW-GV

    VFD Display

                  HV/HW-GL

      LCD
    Display

    RS-232C
    Interface

     Counting                HW-60KGL                                                                                    HW-200KGV
     Function

    Percentage
     Function

    Accumulation
       Function

    Comparator               Wide selection from 14 models in total
      Function                 HV- c c c GL Triple weighing ranges & LCD display
                               HV- c c c GV Triple weighing ranges & VFD display
     ON           HV/HW-GV     HW- c c c GL High resolution (1/10,000) & LCD display
                               HW- c c c GV High resolution (1/10,000) & VFD display
    Auto Power
         ON                  Simple batch function and full/dribble batch function
                             IP65 dust and waterproof weighing platform
                  HV/HW-GL   Built-in impact dot-matrix printer (optional, and for the HV/HW-GV only)

    Auto Power
         OFF

                  HV/HW-GL

     Normal                  Model HV-15KGL HV-60KGL HV-200KGL HV-15KGV HV-60KGV HV-200KGV
     Battery

    M

    EC Type
    Approval

                             Capacity      3 kg 6 kg 15 kg 15 kg 30 kg 60 kg 60 kg 150 kg 220 kg 3 kg 6 kg 15 kg 15 kg 30 kg 60 kg 60 kg 150 kg 220 kg

              Platform only  Resolution 0.001 kg 0.002 kg 0.005 kg 0.005 kg 0.01 kg 0.02 kg 0.02 kg 0.05 kg 0.1 kg 0.001 kg 0.002 kg 0.005 kg 0.005 kg 0.01 kg 0.02 kg 0.02 kg 0.05 kg 0.1 kg

    IP65                     Display type         Liquid Crystal Display (LCD)                        Vacuum Fluorescent Display (VFD)

                             Power supply AC adapter or 6 D alkaline batteries (600 hours)            AC main

                             Weighing pan 250 × 250 mm 330 × 424 mm 390 × 530 mm 250 × 250 mm 330 × 424 mm 390 × 530 mm

    Software

                             Model HW-10KGL HW-60KGL HW-100KGL HW-200KGL HW-10KGV HW-60KGV HW-100KGV HW-200KGV

                             Capacity      10 kg  60 kg              100 kg     220 kg        10 kg   60 kg              100 kg                220 kg

                             Resolution    0.001 kg 0.005 kg         0.01 kg    0.02 kg       0.001 kg 0.005 kg          0.01 kg               0.02 kg

                             Display type         Liquid Crystal Display (LCD)                        Vacuum Fluorescent Display (VFD)

                             Power supply AC adapter or 6 D alkaline batteries (600 hours)            AC main

                             Weighing pan 250 × 250 mm 330 × 424 mm  390 × 530 mm             250 × 250 mm 330 × 424 mm  390 × 530 mm

                             Options & Accessories

                             HVW-02G       Extension cable (5 m)                              HVW-14  Roller conveyer (medium) for HV/HW-60K
                             HVW-03G       RS-232C + comparator relay output with buzzer
                             HVW-04G       RS-422/485 + comparator relay output               AX-ERC-05-S Ink ribbons for the HVW-06G (5 pcs)
                             HVW-06G       Built-in printer (for HV/HW-GV only)
                             HVW-13        Roller conveyer (large) for HV-200K, HW-100K/200K  AX-PP156-S Printer paper for the HVW-06G (10 rolls)

                                                                                                    Only one of HVW-03G, HVW-04G or the standard RS-232C can be used.

                                                                                              *** HVW-06G is a factory-installed option.

32
