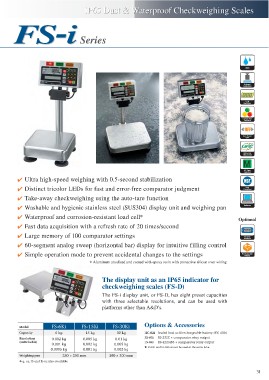

Page 31 - AND-Keymatic

IP65 Dust & Waterproof Checkweighing Scales

FS-i Series

IP65

External
Calibration

LCD
Backlight

Comparator
Function

Auto Power
OFF

Ultra high-speed weighing with 0.5-second stabilization Universal
Distinct tricolor LEDs for fast and error-free comparator judgment Flexi Coms
Take-away checkweighing using the auto-tare function
Washable and hygienic stainless steel (SUS304) display unit and weighing pan M
Waterproof and corrosion-resistant load cell*
Fast data acquisition with a refresh rate of 20 times/second EC Type
Large memory of 100 comparator settings Approval
60-segment analog sweep (horizontal bar) display for intuitive filling control
Simple operation mode to prevent accidental changes to the settings NSF
Compliant
* Aluminum anodized and coated with epoxy resin with protective silicon over wiring
Software

Optional

RS-232C
Interface

Rechargeable
Battery

The display unit as an IP65 indicator for
checkweighing scales (FS-D)

The FS-i display unit, or FS-D, has eight preset capacities
with three selectable resolutions, and can be used with
platforms other than A&D’s.

Model FS-6Ki FS-15Ki FS-30Ki Options & Accessories

Capacity 6 kg 15 kg 30 kg HC-02i Sealed lead acid rechargeable battery (6V, 4Ah)
FS-03i RS-232C + comparator relay output
Resolution 0.002 kg 0.005 kg 0.01 kg FS-04i RS-422/485 + comparator relay output
(switchable) 0.001 kg 0.002 kg 0.005 kg
0.0005 kg 0.001 kg 0.002 kg * FS-03i and FS-04i cannot be used at the same time.

Weighing pan 250 × 250 mm 380 × 300 mm

❖ g, oz, lb and lb-oz also available

31
