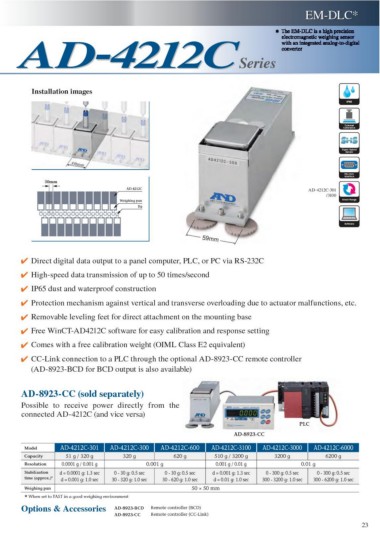

EM-DLC*

AD-4212CSeries

Installation images

IP65

External
Calibration

Super Hybrid
Sensor

RS-232C
Interface

30mm

AD-4212C AD-4212C-301
/3100
Weighing pan
Jig Smart Range

Software

59mm

Direct digital data output to a panel computer, PLC, or PC via RS-232C
High-speed data transmission of up to 50 times/second
IP65 dust and waterproof construction
Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
Removable leveling feet for direct attachment on the mounting base
Free WinCT-AD4212C software for easy calibration and response setting
Comes with a free calibration weight (OIML Class E2 equivalent)
CC-Link connection to a PLC through the optional AD-8923-CC remote controller
(AD-8923-BCD for BCD output is also available)

AD-8923-CC (sold separately)

Possible to receive power directly from the
connected AD-4212C (and vice versa)

PLC

AD-8923-CC

Model AD-4212C-301 AD-4212C-300 AD-4212C-600 AD-4212C-3100 AD-4212C-3000 AD-4212C-6000
Capacity
Resolution 51 g / 320 g 320 g 620 g 510 g / 3200 g 3200 g 6200 g
Stabilization 0.0001 g / 0.001 g 0.001 g / 0.01 g
time (approx.)* 0.001 g 0.01 g
d = 0.0001 g: 1.3 sec d = 0.001 g: 1.3 sec
d = 0.001 g: 1.0 sec 0 - 30 g: 0.5 sec 0 - 30 g: 0.5 sec d = 0.01 g: 1.0 sec 0 - 300 g: 0.5 sec 0 - 300 g: 0.5 sec
30 - 320 g: 1.0 sec 30 - 620 g: 1.0 sec 300 - 3200 g: 1.0 sec 300 - 6200 g: 1.0 sec

Weighing pan 50 × 50 mm

* When set to FAST in a good weighing environment

Options & Accessories AD-8923-BCD Remote controller (BCD)
AD-8923-CC Remote controller (CC-Link)
