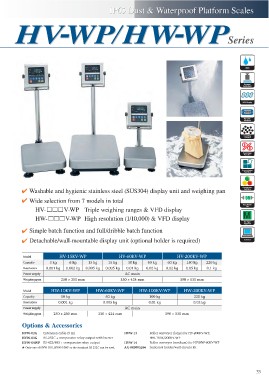

IP65 Dust & Waterproof Platform Scales

HV-WP/ HW-WPSeries

Washable and hygienic stainless steel (SUS304) display unit and weighing pan IP65
Wide selection from 7 models in total
External
HV- c c c V-WP Triple weighing ranges & VFD display Calibration
HW- c c c V-WP High resolution (1/10,000) & VFD display
VFD Display
Simple batch function and full/dribble batch function
Detachable/wall-mountable display unit (optional holder is required) RS-232C
Interface

Counting
Function

Percentage
Function

Accumulation
Function

Comparator
Function

ON

Auto Power
ON

M

EC Type
Approval

Software

Model HV-15KV-WP HV-60KV-WP HV-200KV-WP
Capacity
Resolution 3 kg 6 kg 15 kg 15 kg 30 kg 60 kg 60 kg 150 kg 220 kg
Power supply
Weighing pan 0.001 kg 0.002 kg 0.005 kg 0.005 kg 0.01 kg 0.02 kg 0.02 kg 0.05 kg 0.1 kg

AC main

250 × 250 mm 330 × 424 mm 390 × 530 mm

Model HW-10KV-WP HW-60KV-WP HW-100KV-WP HW-200KV-WP
Capacity
Resolution 10 kg 60 kg 100 kg 220 kg
Power supply 0.001 kg
Weighing pan 0.005 kg 0.01 kg 0.02 kg
250 × 250 mm
AC main

330 × 424 mm 390 × 530 mm

Options & Accessories HVW-13 Roller conveyer (large) for HV-200KV-WP,
HW-100K/200KV-WP
HVW-02G Extension cable (5 m) HVW-14 Roller conveyer (medium) for HV/HW-60KV-WP
HVW-03G RS-232C + comparator relay output with buzzer AX-043005266 Indicator holder/wall-mount kit
HVW-04WP RS-422/485 + comparator relay output

* Only one of HVW-03G, HVW-04WP or the standard RS-232C can be used.
